PROFESSIONAL
TUMBLE DRYERS
TDC1772CC.S

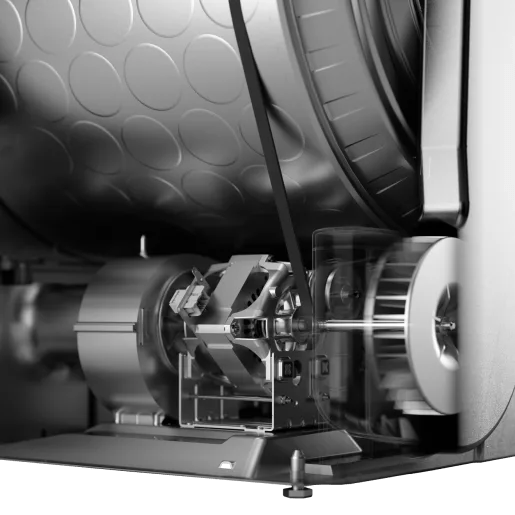

This dryer from our professional range features Butterfly Drying – non-reverse drum movement with a non-bunching effect. With a stainless steel drum, a quiet BLDC motor and durable ball bearings, you get dry clothes and textiles for a long time.
The dryer is very easy to use, has a delayed start function of 100 hours and a total of 25 programs, 10 of which are fully customisable. The drum has a volume of 177 liters and a capacity of 7kg. The element power is 2.5kW.
PROFESSIONAL
TUMBLE DRYER
TDC1772CC.S
This dryer from our professional range features Butterfly Drying – non-reverse drum movement with a non-bunching effect. With a stainless steel drum, a quiet BLDC motor and durable ball bearings, you get dry clothes and textiles for a long time.
The dryer is very easy to use, has a delayed start function of 100 hours and a total of 25 programs, 10 of which are fully customisable. The drum has a volume of 177 liters and a capacity of 7kg. The element power is 2.5kW.
Specifications
Construction
| Installation Type | Freestanding |
| Operation Type | Front desk attendant |
| Capacity | 7kg |
| Drum volume | 117L |
| Product Type | Condenser |
| Heating System | Electric Heater |
| Door / Frame | Plastic Steel |
| Door opening diameter | 340mm |
| Door opening angle | 180′ |
| Door opening | Right / Left |
Standard Electrical Connection
| Switchable | Two 10’s |
| Connection Effect | 2800w |
| Fuse | 16A |
| Volts (V) | 220 – 240V |
| Frequency | 50Hz |
| Wire Length | 2100mm |
Steering
| Control Type | Electrionically |
| Personal setting for all programs | Yes |
| Display type | LCD panel |
| Digital countdown indicator | Yes |
| Number of programs | 17 |
Logistic Information
| Product width | 595mm |
| Product hieght | 850mm |
| Product depth | 654mm |
| Product width (packed) | 640mm |
| Product hieght (packed) | 920mm |
| Product depth (packed) | 723mm |
| Net weight | 43.5kg |
| Gross wieght | 47.9kg |
| Adjustable feet | 15mm |
| Depth with door open | 1165 mm |
Characteristics
| Sensors | Residual Humidity Sensor |
| Reverse drum action | Yes |
| Phase indicator | Display |
| Full tank indicator | Yes |
| Delayed Start | 30min – 24 hours |
| Settings |
Anti-crease function Refresh Gentle drying Delayed start |
| Indicator when the program is completed | Yes |
| Automatic cleaning of the condenser filter | No |
| Filter system | Yes |
| Overheat control | For engine and electronics |
Performance
| Weighted Condensation Efficiency (ct) | 91% |
| Water Tank Volume | 6L |
| Heat Effect | 2500W |
Energy Level
| Energy Rating |
B |
| Energy consumption | 4.14kWh |
| Estimated energy consumption (annually) | 504.2kWh |
| Sound level when drying dB(A) | 66 |
| Time in left on mode | 5 min |
| Enerfy comsumption in standby mode | 0.8W |
| Weighted program hour |
130min |
Certificate
| ISo 9001 Certified Manufacturer | Yes |
Connection
| Payment System | Yes, Ready for integration |
Functions
Soft Drum

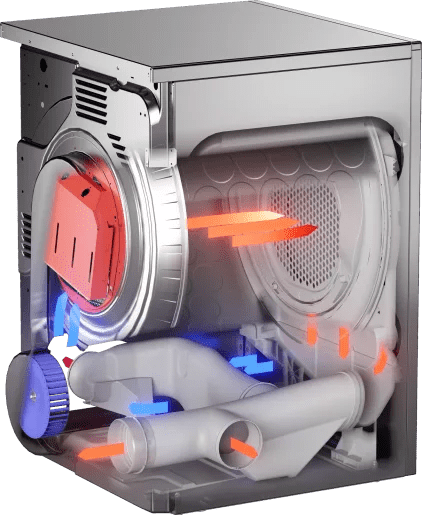

Soft Drum has been developed to improve the air flow around the laundry, thereby increasing the drying effect. The circular recesses with rounded edges also have a cushioning effect that reduces wear and tear on the fabrics. The new drum design allows even and gentle drying for both small and larger washes.
