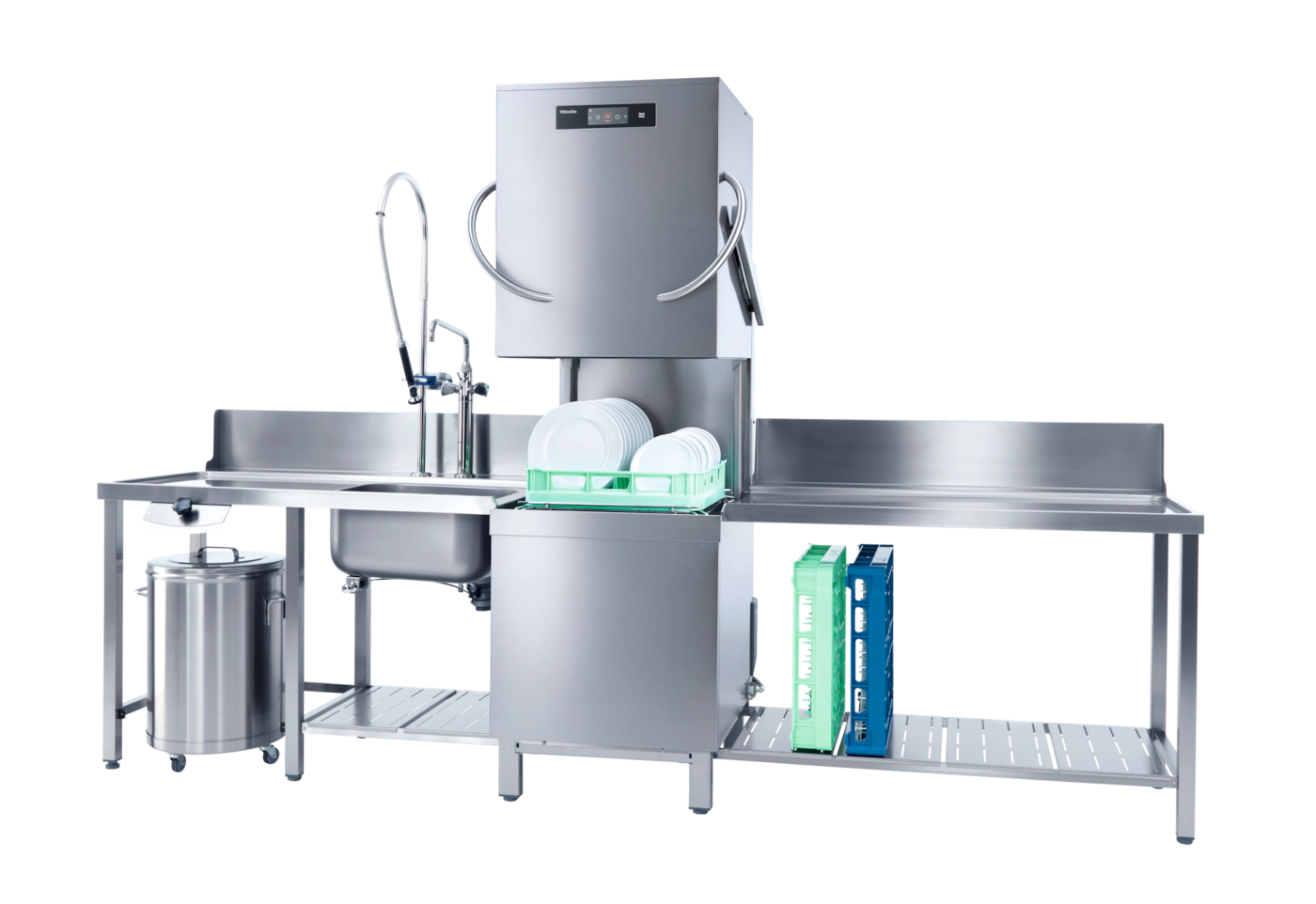

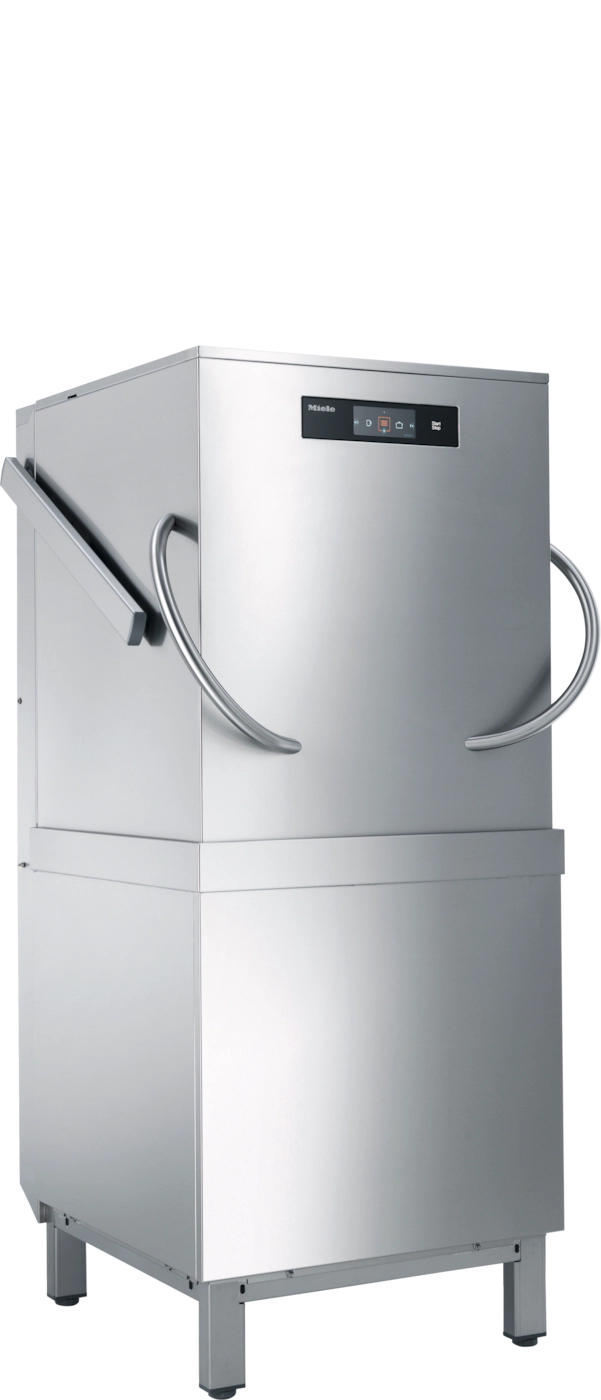

Miele PTD901 Performance Hood Dishwasher
Throughfeed dishwasher with short cycles for crockery in the hotel and catering industries.
- Max. cleaning performance1: 1296 plates/h
- Always the right programme – item-specific solutions
- Optimum workflow – push-through basket system
- Optimum suds filtering- first-class filter system
- Simple and flexible operation – full-touch display
Specifications
Construction type and version
| Construction type | Passthrough dishwasher |
| Range | Professional |
| Model | Performance |
| Wash system | Tank passthrough |
| Number of levels | 1 |
| Front | Stainless steel |
| Tank volume in l | 35 |
Application
| Suitable for retirement and care homes | ✓ ⓘ |
| Suitable for hospitals | ✓ ⓘ |
| Suitable for small restaurants/bars | ✓ ⓘ |
| Suitable for hospitality industry | ✓ ⓘ |
| Suitable for guesthouses | ✓ ⓘ |
| Suitable for canteens | ✓ ⓘ |
| Suitable for child care facilities | ✓ ⓘ |
| Suitable for universities and schools | ✓ ⓘ |
| Suitable for fast food restaurants | ✓ ⓘ |
| Suitable for sports clubs | ✓ ⓘ |
Performance data
| Tested virucidal efficacy | ✓ ⓘ |
| Circulation pump Qmax in l/min. | 300 |
| Shortest programme duration in sec. ⓘ | 50 |
| Maximum final rinse temperature in °C | 90 |
| Cleaning performance, plates/h ⓘ | 1296 |
| Cleaning performance, glasses/h ⓘ | 3773 |
| Cleaning performance, baskets/h ⓘ | 72 |
| Service life in wash cycles ⓘ | 438000 |
Control system
| Control system | Electronic control |
| Programme selection | Full-touch display |
| Automatic On/Off standby switch | ✓ |
| Dishwashing programmes [number] | 3 |
| Adjustable final rinse temperature | ✓ |
| Adjustable rinse time | ✓ |
| Coloured programme sequence indicator | ✓ |
| Choice of display language | ✓ |
Standard electrical connection
| Electrical connection | 3N AC 380-415V 50HZ |
| Heater rating in kW | 6.9 |
| Tank heater rating in kW | 2.5 |
| Boiler heater rating in kW | 6.4 |
| Total connected load in kW | 7.9 |
| Fuse rating in A | 16 |
| Length of mains connection cable in m | 3.5 |
Possible voltage
| Electrical connection | 3N AC 380-415V 50HZ |
| Heater rating in kW | 6.9 |
| Total connected load in kW | 10.5 |
| Fuse rating in A | 25 |
Water connection/drainage
| Cold or hot water [number] | 1 |
| Maximum temperature of inlet water in °C | 60 |
| Required flow pressure in bar | 1-6 |
| Drain pump [DN] | 19 |
| Drain pump head height from floor level, max. in c | 65 |
| Booster pump | ✓ ⓘ |
| Maximum water hardness in mmol/l ⓘ | 0.54 |
| Water consumption per wash cycle in l | 2.2 |
| Length of water inlet hose in cm | 150 |
| Length of water drain hose in cm | 150 |
Dimensions and weight
| Maximum height adjustment in mm | 35 |
| External dimensions with closed hood, height | 1535 |
| External dimensions with opened hood, height | 2010 |
| External dimensions, net width in mm | 635 |
| External dimensions, net depth in mm | 750 |
| External dimensions, gross height in mm | 1660 |
| External dimensions, gross width in mm | 770 |
| External dimensions, gross depth in mm | 880 |
| Usable space in wash cabinet, height in mm | 440 |
| Usable space in wash cabinet, width in mm | 540 |
| Usable space in wash cabinet, depth of lower basket in mm | 500 |
| Usable space in wash cabinet, depth in mm | 550 |
| In-feed height above floor in mm | 850 |
| Net weight [kg] | 137 |
| Gross weight in kg | 151 |
| Maximum floor load in N/m² | 2026 |
SUSTAINABILITY
Miele’s global reputation for reliability is no accident. All of our products undergo meticulous testing to simulate over ten years of continuous and rigorous use
37
Miele became a member of the UN Global Compact, promoting sustainability in business.
0
Miele GB achieved Zero waste to landfill certification. We are carbon neutral, with a goal to achieve this across the complete. lifecycle of our products.
0%
Committed to reduce CO2 emissions by 15% in the use phase of our products by 2030.
1%
Lower CO2 since 2000.

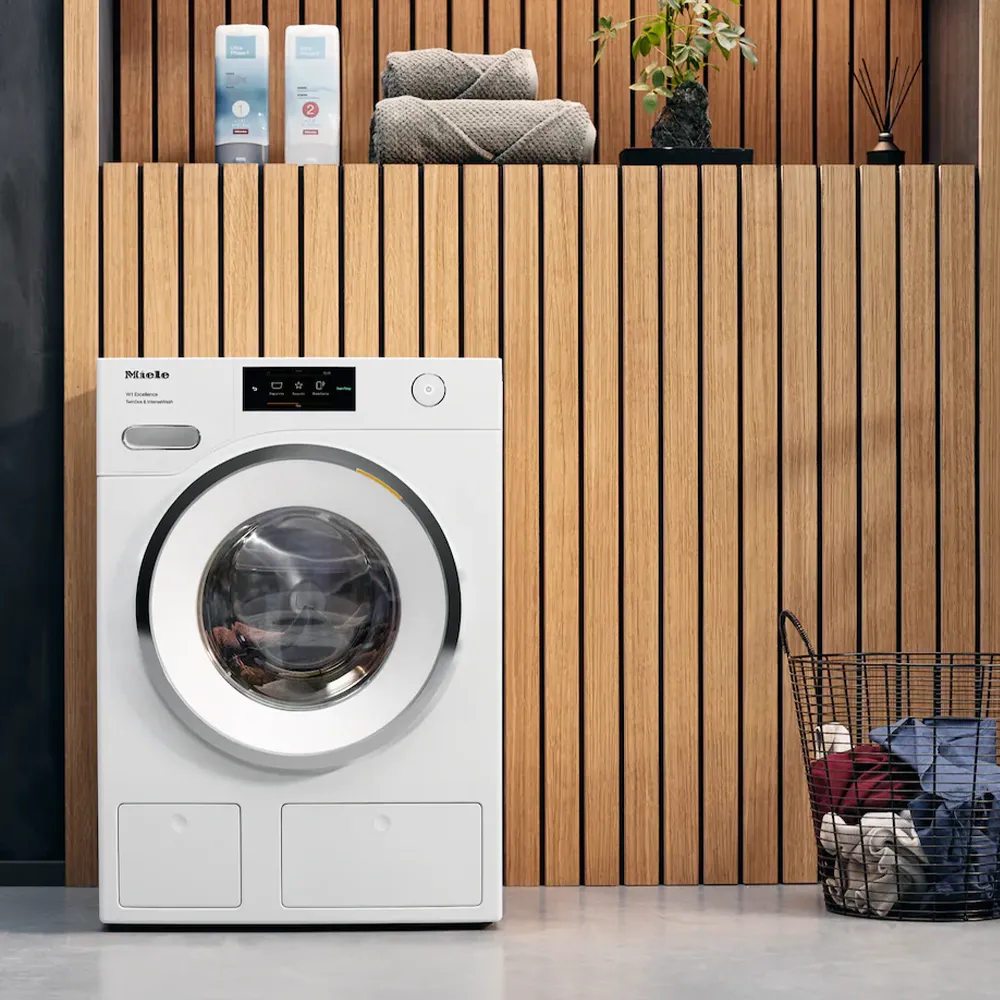

Quick & Efficient
QuickPowerWash
49mins
Excellent cleanliness in just 49 minutes. With QuickPowerWash, Miele achieves a high-level cleaning performance in a surprisingly short time. This is all made possible with Spin&Spray technology, saving time, water and energy.
W1 series
10%–20%
Miele “Efficiency” washing machines, primarily within the W1 series (WWD380 WCS), represent premium, eco-friendly laundry care with A-rated energy efficiency, often exceeding standards by 10%–20%. Features include automatic load recognition and CapDosing for precise detergent usage.

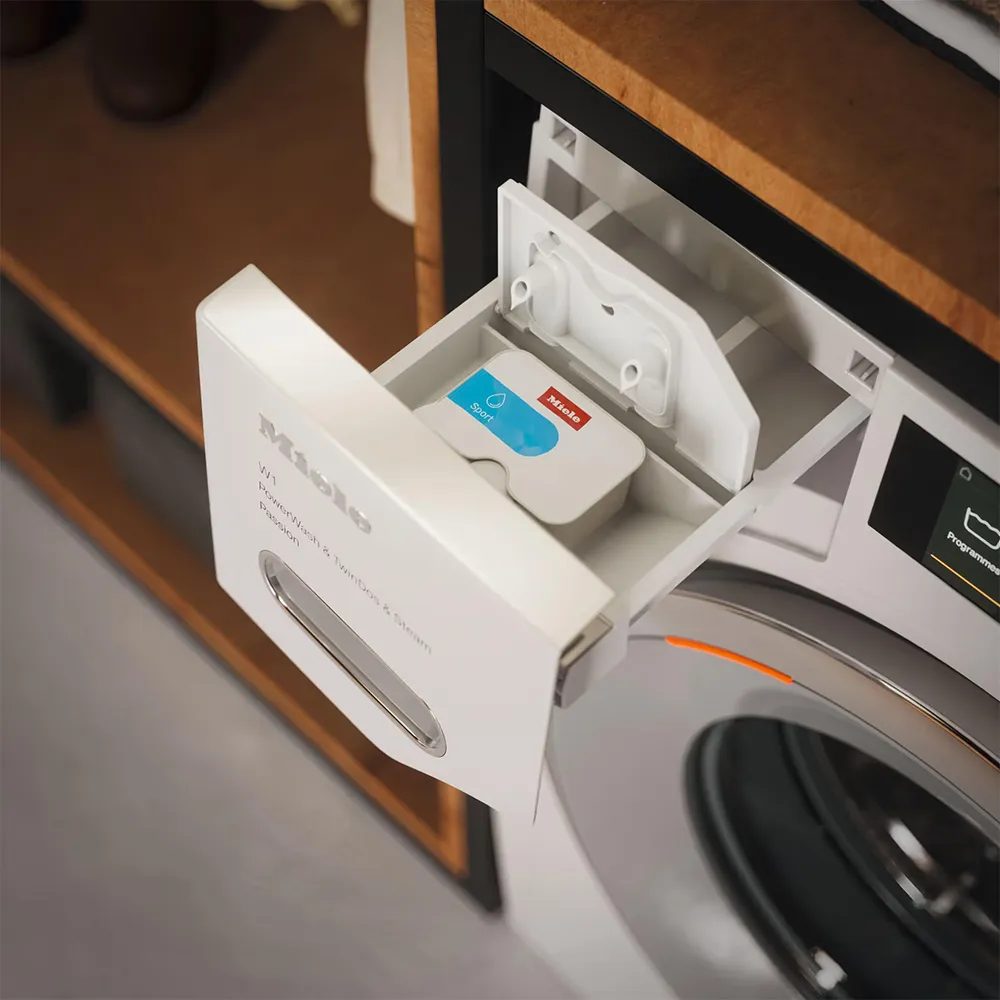

Proven Hygiene
Effective against viruses – scientifically proven
Our washing machines in the Little Giants series remove more than 99.9 %2 of all viruses (including coronaviruses).
Clinical cleaning outside of healthcare
Safe and rapid laundry care for businesses outside the healthcare environment: according to certification by the Institute for Integrative Hygiene and Virology, washing in washing machines from the SmartBiz series using Miele’s ProCare Tex detergent removes more than 99.9 % of enveloped and non-enveloped viruses in the Cottons 90 °C programme.
GET A FREE QUOTE
Looking for a reliable commercial appliance solution for your business? Request a free, no-obligation quote from our team today. Whether you need catering equipment, refrigeration, laundry appliances, or servicing support, we’ll provide tailored recommendations and competitive pricing to suit your requirements and budget.

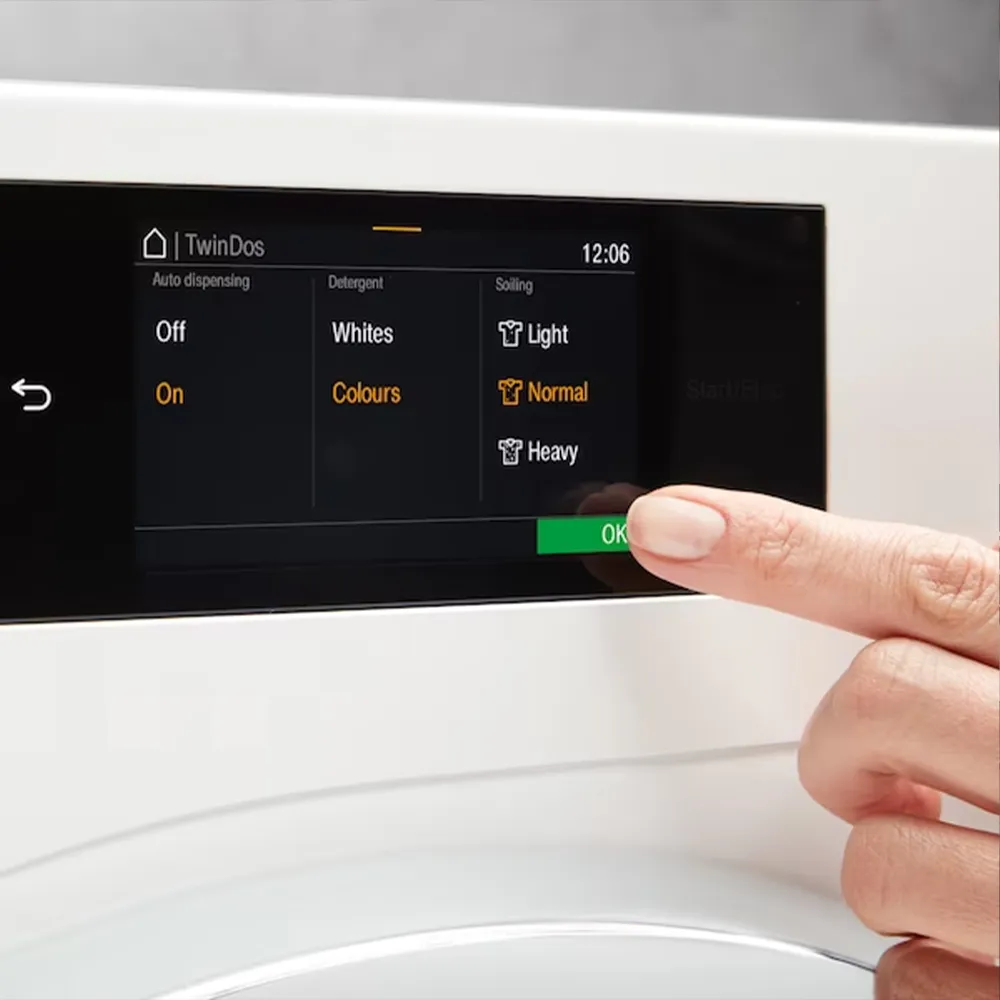

M Select Control System
Optimum results at the flick of a wrist
M Select Mop controls
ProfiLine Mop controls
Profitronic D Mop

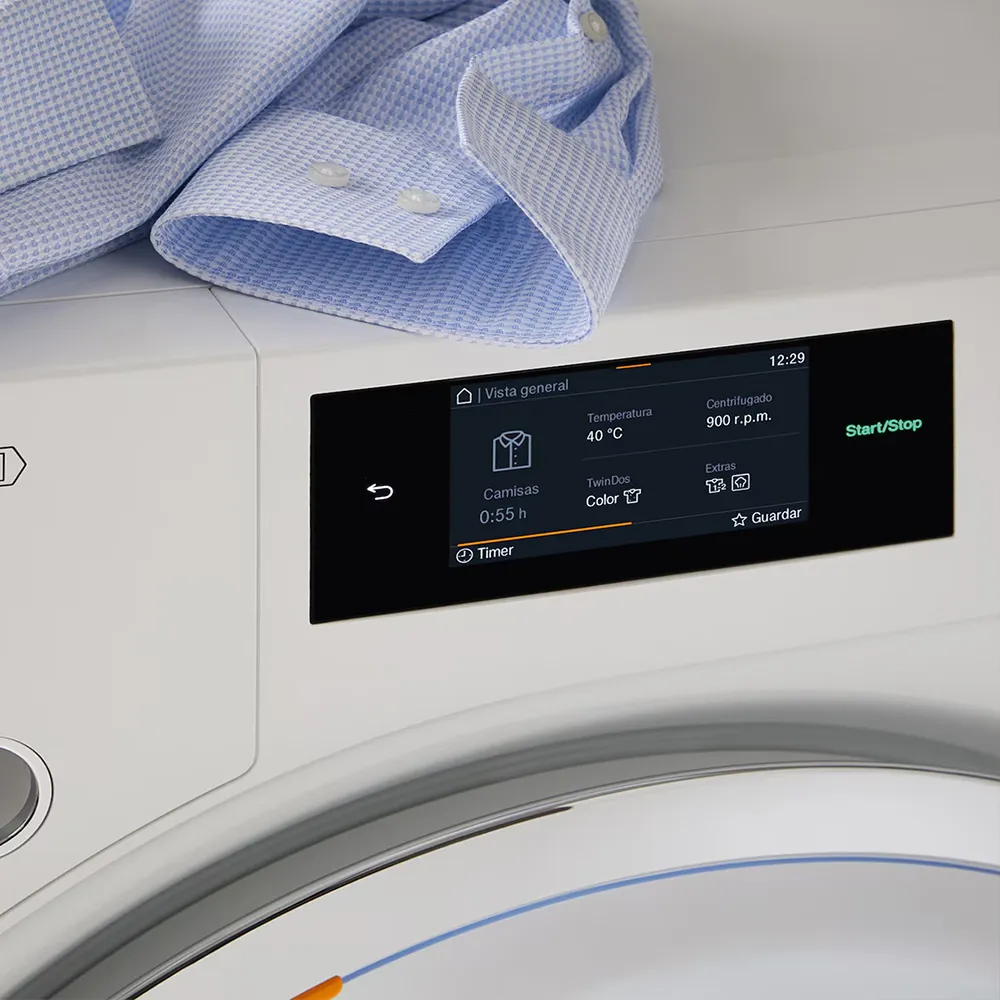

M Touch Flex Control System
